Anaesthesia Workstations

With its products, Heinen + Löwenstein combines innovative technology with customer-oriented training concepts, application support and
unparalleled service. The anesthesia systems from Heinen + Löwenstein combine an ergonomically proven design and hygienic concept with the
latest state-of-the-art technology which optimally supports your work, whether in the introduction, surgery, diagnostic or other relevant hospital systems.

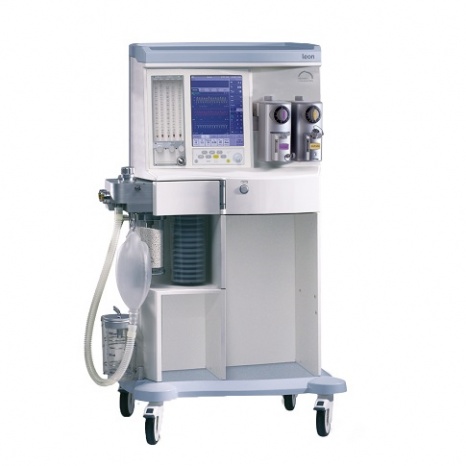

Leon Basic

This “personal anaesthesia work station” combines proven ergonomic design and hygienic concepts with top technology thus providing optimum support for your work, e.g. during the initiation and course of operations, for diagnostic purposes and other relevant hospital systems.

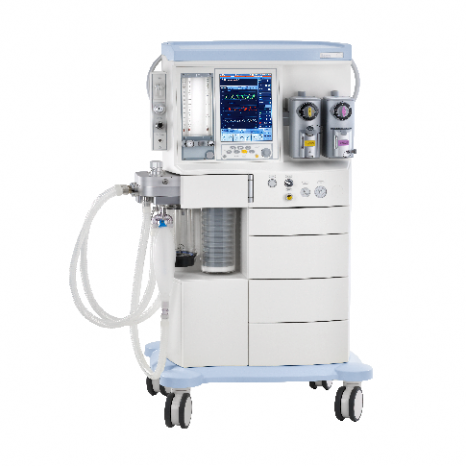

Leon

A present-day anaesthesia work station ought no longer provide maximum technical performance but also new and expandable platform concepts.

These can be configured according to personal demands. By the development of Leon, Löwenstein Medical is setting new standards.

Leon for wall/ceiling

the ‘anaesthesia support’ Leon is also available as a unit for wall and ceiling suspension. The unit is identical with the mobile cart version. With this option, Löwenstein Medical offers a further range of application in anaesthesia care thus making your work routines even more flexible.

Leon plus

Anaesthesia assistance, equipped for example with ventilation performance in back breathing system on the level of an intensive respirator and precise electronic gas mixing in a wide flow range of 200 ml/min to 18 L/min. 15″ colour TFT monitor and gas sensor in various versions.

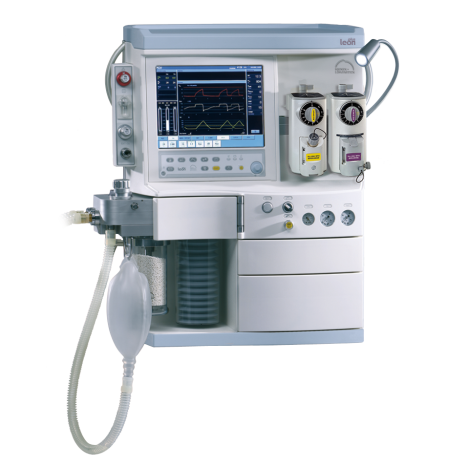

Leon plus for wall/ceiling

the ‘anaesthesia support’ Leon plus is also available as a unit for wall and ceiling suspension. The unit is identical with the mobile cart version. With this option, Löwenstein Medical offers a further range of application in anaesthesia care thus making your work routines even more flexible.

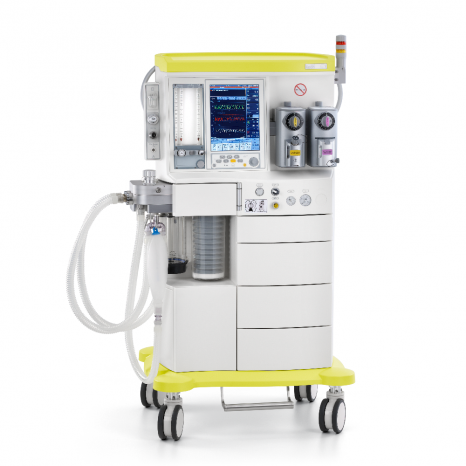

Leon mri

The Leon mri has been specially developed for use in the MRI area with field strengths of up to 40 millitesla. It can be operated on 1.5 tesla and 3.0 tesla mri systems. Different coloured alarms and messages indicating the priority can be easily recognised due to LED lights, which are visible from all sides, also outside the MR field.


Sleep Diagnostics and SLEEP Apnea Therapy

In the area of modern sleep medicine, there are more than 80 known clinical sleep disorders which also cause medical ailments during the day.
For diagnostic purposes, it is extremely important to record biosignals of nocturnal sleep, motor function, respiratory and circulatory function.
As a market leader in sleep diagnostics, Heinen + Löwenstein offers a comprehensive product portfolio and customized services.

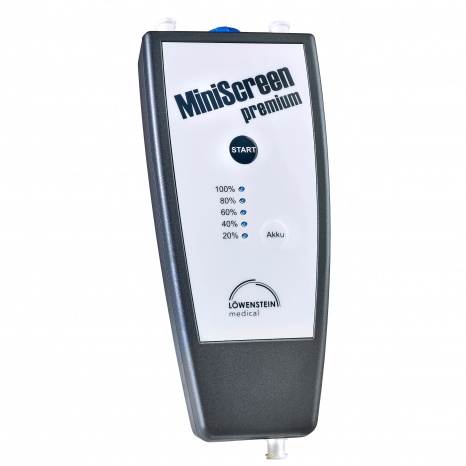

Polygraphy » MiniScreen premium

MiniScreen premium is the new cardiorespiratory polygraphy from Löwenstein Medical. The device‘s strength lies in the measurement of the airflow during PAP treatment. Especially for ventilation modes like BiLevel and ASV which require quickly changing and high pressures, the integrated differential pressure measurement provides an excellent airflow signal. That makes MiniScreen premium perfectly suited for use in Non-Invasive Ventilation monitoring. Still another strength of the device is seen in the analysis of autonomous arousals, which permits reliable analysis of RERA (Respiratory Effort-Related Arousals) in polygraphy.

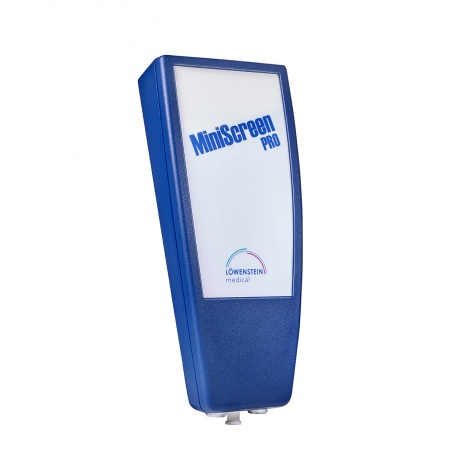

Polysomnography » MiniScreen PRO

MiniScreen premium is the new cardiorespiratory polygraphy from Löwenstein Medical. The device‘s strength lies in the measurement of the airflow during PAP treatment. Especially for ventilation modes like BiLevel and ASV which require quickly changing and high pressures, the integrated differential pressure measurement provides an excellent airflow signal. That makes MiniScreen premium perfectly suited for use in Non-Invasive Ventilation monitoring. Still another strength of the device is seen in the analysis of autonomous arousals, which permits reliable analysis of RERA (Respiratory Effort-Related Arousals) in polygraphy.

CPAP and APAP Device

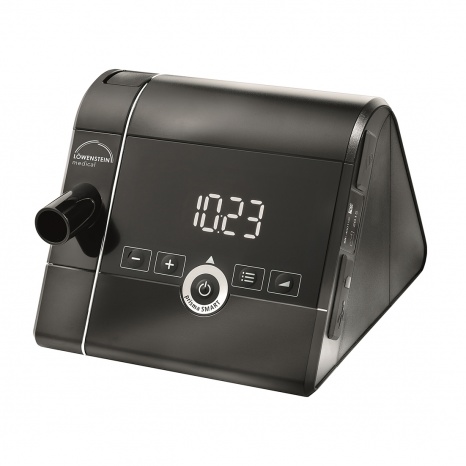

prisma SMART.
The new prisma SMART continues the tradition of high-quality auto-CPAP devices from Löwenstein Medical and offers the new option of classic or dynamic pressure regulation for personalized respiratory therapy. Classic, simple user navigation with easy-to-read display. The standard supply schedule includes a pollen filter. The device can be combined with the well-known humidifier prismaAQUA.

BiLevel S and ST Devices

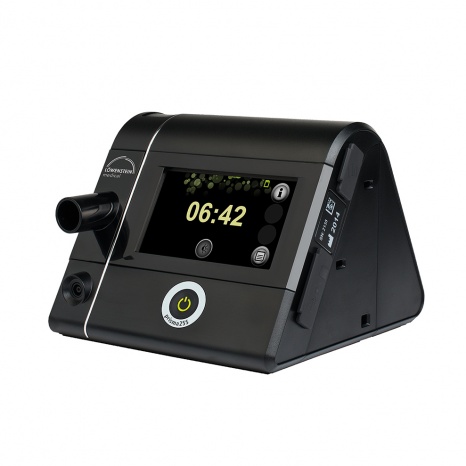

prisma25S.
With several innovative details, this new BiLevel auto device from Weinmann sets new technical standards in its product class. Among the features are a large, color touch screen, intelligent trigger functions, and optional TRI-Level, the clinically validated algorithm for maximum pressure effectiveness.
With optional prismaAQUA and heated breathing tube.

BiLevel SV Devices (ASV)

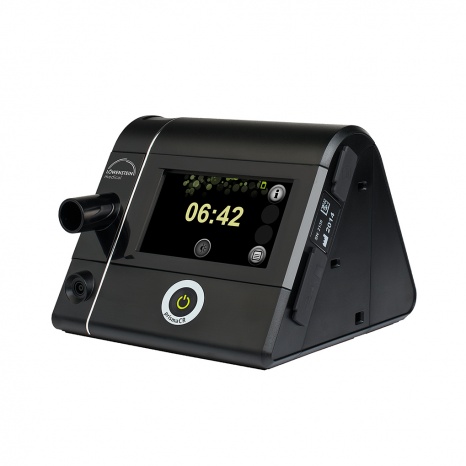

prismaCR.
The new top product in the prismaLINE connects a modern high-performance blower with the clinically evaluated ventilation technology from Weinmann for the treatment of central and complex Sleep-Disordered Breathing. Anticyclic Servoventilation (ASV) with auto EPAP management and optional TRILevel technology allow for highly personalized therapy options. A unique device feature is the pressure range from 4 to 30 hPa.

Humidifiers

prismaAQUA.
The high-performance humidifier prismaAQUA is intended for use with prismaLINE, premium devices for sleep therapy from Löwenstein Medical. With convenient pre-heating function and optional heated breathing tube.

Home Ventilators

Respiratory Home Therapy
Our company offers therapy devices from Löwenstein Medical Technology

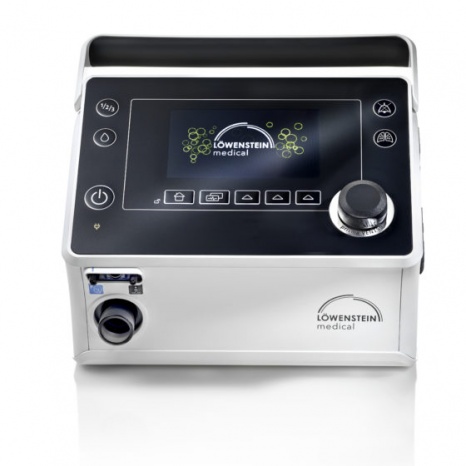

prisma VENT50

VENT50 ventilates patients via a leakage circuit and additionally via a disposable system with patient valve. Other functions and features includes a larger pressure range up to 50 hPa, pressure- and volume-controlled mouthpiece ventilation modes (MPVp and MPVv) and LIAM (Lung Insufflation Assist Maneuver) for cough support and secretion management.

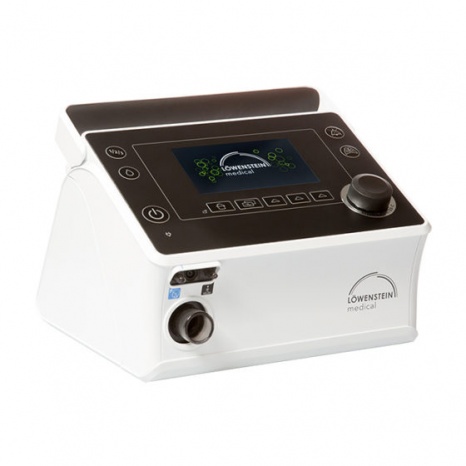

prisma VENT50-C

The prisma VENT50-C ventilator is equipped with High-Flow Therapy (HFT) mode in addition to all the other features available in prisma VENT50. In HFT mode the device provides a constant flow of five to 60 liters per minute. An oxygen feed also can be added. The flow of air is heated and humidified (for example, with prisma VENT AQUA) and delivered to the patient via a nasal cannula.

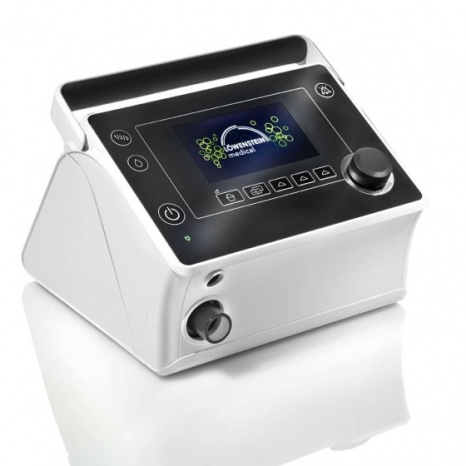

prisma VENT40

The prisma VENT40 now offers safety and even more flexibility. Thanks to a broad pressure range of up to 40 hPa and volume compensation, the device is suitable for treatment of a wide spectrum of disorders. Both prisma VENT30 and prisma VENT40 come with complete alarm management, integrated power supply unit, and an optional internal rechargeable battery with a 12-hour operating capacity.

prisma VENT30-C

The new prisma VENT30 turns the future into reality now. Users appreciate the simple operation and the no-adapter-required compatibility with the accessories from the prismaLINE. The complete set of ventilation modes and pressures up to 30hPa make flexible usage possible even under changing conditions. The functions AIr Trap Control, Trigger lockout and the expiratory ramp ensure safety and comfort in ventilation of COPD patients.

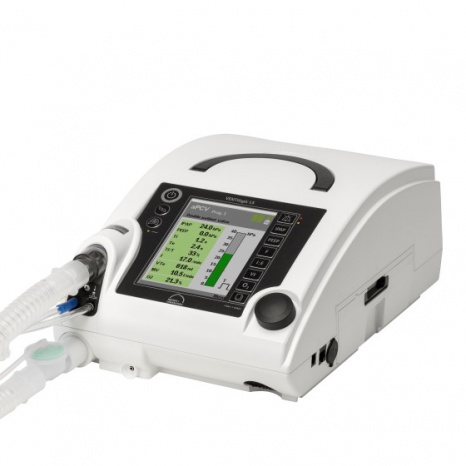

VENTIlogic LS

The new generation of ventilators from Weinmann includes VENTIlogic LS. The devices guarantee a high degree of safety and versatility night and day, thanks to its practical monitoring and mobility options and unique ventilation functions. VENTIlogic LS offers you connection options for leakage circuit, single patient circuit with patient valve and double patient circuit with patient valve. This ventilator also has volume-controlled ventilation modes (aVCV, VCV).

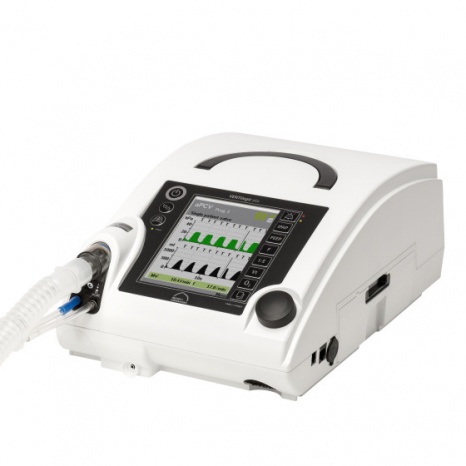

VENTIlogic plus

VENTIlogic plus begins the new generation of ventilators. It guarantees a high degree of safety and versatility every day at any time, thanks to its practical monitoring and mobility options and unique ventilation functions. Innovative features – cough support LIAM, three storable ventilation programs, volume compensation, AirTrap Control, Trigger lockout and the expiratory ramp – provide quick and reliable support with ideal therapy settings.

VENTImotion 2

Greater versatility with VENTImotion 2 means more convenience and effectiveness in Non-Invasive Ventilation. Now you can increase inspiratory pressure up to 40 mbar and gain a broader range of use. The proven combination of Timed-Adaptive mode, Trigger lockout, exhalation monitoring AirTrap Control and the expiratory ramp simplifies ventilation therapy for COPD patients in particular. Thanks to the optimized regulation of tidal volume by means of volume compensation.

EO-150

The EO-150 is equipped with a unique Click & Go feature that allows the ventilation module to be operated in or away from the docking station. As the separate module is smaller and lighter, the patient enjoys grater mobility. Alarms and patient mode can be transmitted to a tablet PC or smartphone app to give the patient even more freedom of movement.

Intensive Care Ventilation

In and out of hospital artificial respiration is a particular focus of the Heinen + Löwenstein product portfolio. The hospital portfolio is rounded
off with an extensive collection of accessories including all standard NIV masks, respiratory gas humidification , inhalation therapy and secretion management.

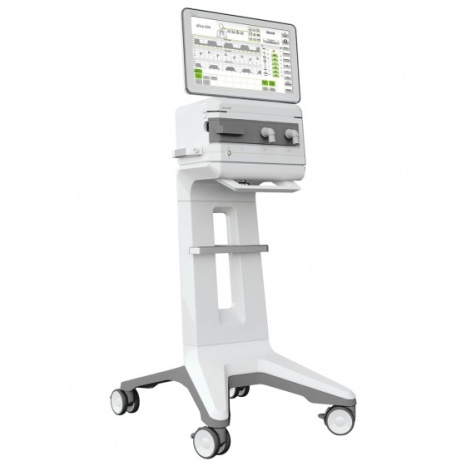

Elisa 600

Elisa 600 is an innovative standard breathing ventilator for invasive and non-invasive artificial respiration in the case of all clinical conditions, for all intensive care activities and for patients weighing 3,5 kg and more. A variety of hardware and software options allow for individual configuration to be made according to the requirements at hand, as well as providing for an artificial respiration platform that is assured a good future.

Elisa 800

Elisa 600 is an innovative standard breathing ventilator for invasive and non-invasive artificial respiration in the case of all clinical conditions, for all intensive care activities and for patients weighing 3,5 kg and more. A variety of hardware and software options allow for individual configuration to be made according to the requirements at hand, as well as providing for an artificial respiration platform that is assured a good future.

Elisa 800 vit

VIT – Ventilator Integrated Tomography is the world‘s first fully integrated EIT system in an intensive care ventilator. The non-invasive pulmonary monitoring of the elisa 800VIT visualizes for the first time ventilation-related complications and allows for direct therapy at the intensive care ventilator. As a result, ventilation becomes transparent as well as directly controllable.

Charisma

CPAP therapy in the 21st century Charisma is a state-of-the art device for constant positive airway pressure therapy. • Coloured touch screen: intuitive user guidance. • Automatic flow adjustment and adaption. • Unique: no reservoir bag needed. • Dynamic leakage compensation. • Cost efficiency by low gas consumption. • Drug nebulizer

Alpha 301 / 302

Improving ventilation with recruitment.
Respiratory therapy with intermittent positive pressure breathing (IPPB therapy) is a recognized treatment concept for obstructive respiratory disease. In case of heavily reduced ventilation reserves or pronounced respiratory failure, it is recommended to administer aerosols through inhalation.

AIRcon

The AIRcon respiratory gas humidifier combines modern technology and innovative design in a high performance unit. Thus, it fulfils the medical requirements and the economic expectations of the market. The result is optimal physiologically conditioned respiratory gas, which protects the mucous membranes of the ventilated patient from drying out and prevents interference with the mucocilliary clearance.

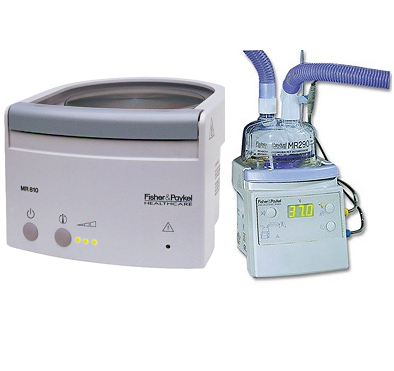

MR810 & MR850

• MR810 - Heated Humidifier.
Three temperature and humidity settings for patient comfort. Integrated heater wire adapter. Ambient temperature sensor. Reduces circuit condensate when used with heated wire circuits.
• MR850 is a respiratory humidifier designed for use in hospital intensive care units. It is used to provide optimum humidity to respiratory gases delivered to patients via endotracheal tubes or face masks.

NEONATOLOGY

With its longstanding experience in the area of neonatology, Heinen + Löwenstein offers a high-performance range of products for respiration,
NIV, heat therapy and monitoring to enable adaptation of the specific requirements of patient and user.

VENTILATION

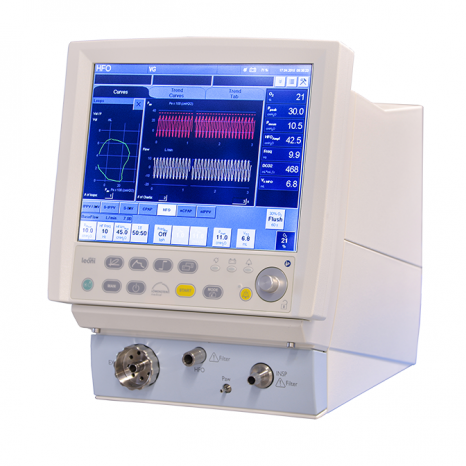

Leoni plus

Leoni plus is suitable for long-term ventilation of very small premature infants, neonates and children weighing up to 30 kg. In addition to the basic ventilation modes CPAP, IPPV/IMV, S-IPPV and SIMV, the device also features two PSV ventilation modes. In assisted ventilation modes there is a volume-controlled tidal volume guarantee available. The precision hot-wire flow sensor at the patient end allows automatic readjustment of trigger sensitivity relative to the patient‘s tidal volume (VT trigger adaptation).

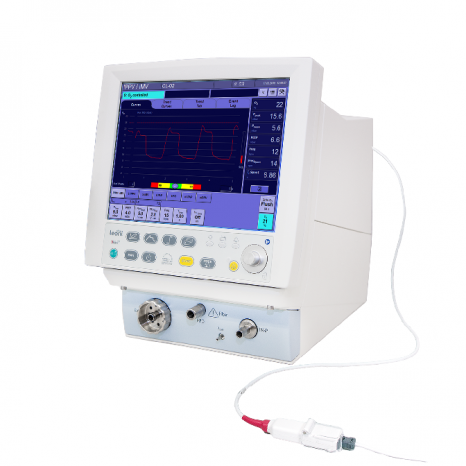

Leoni plus CLAC

CLAC: Closed-Loop AUTOMATIC OXYGEN CONTROL The manual regulation of inspiratory oxygen (FiO2 ) used to supply oxygen to premature infants, is often complicated and time-consuming. A special algorithm has been developed to automate the oxygen control provided to premature infants (CLAC). In order to make the CLAC controller operation as easy and intuitive as possible for the user, the algorithm control and pulse oximetry measurement were integrated into the Leoni plus. The entire operation, is made over the respirator user interface.

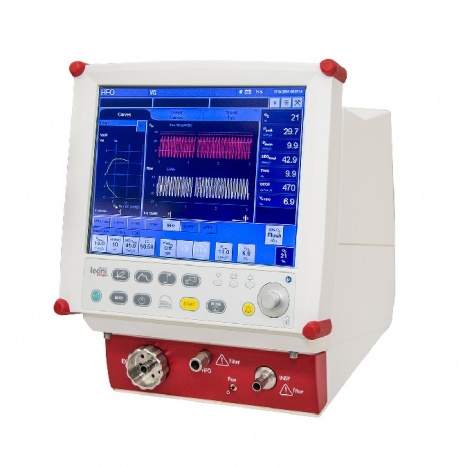

LEONI PLUS TRANSPORT

Patient transport with HFO – no problem with the new Leoni plus Transport. Leoni plus Transport expands your possibilities especially for transport of patients. The device has an integrated high-performance battery that enables stand-alone use for up to 200 minutes in conventional ventilation modes and up to 60 minutes in HFO. The display adapts to the requirements of the user by means of the free selection of the number of curves and loops and displayed measurement values. Leoni plus Transport has comprehensive ventilation modes: CPAP, IPPV/IMV, S-IPPV/ SIMV and two PSV modes.

HEAT THERAPY

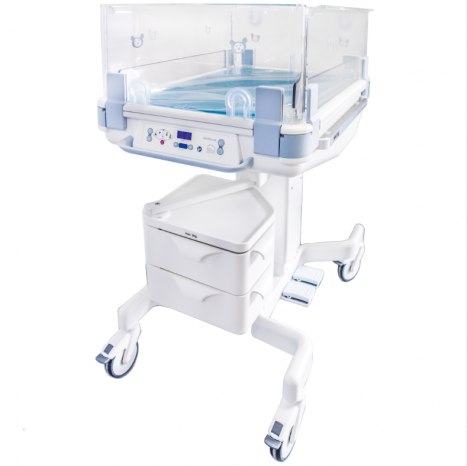

Lifetherm warming bed

A new generation of Warming Cradles and Reanimation Units sets standards in neonatology. Due to the completely revised design of its components, Lifetherm 2000 became a real professional for hospital use. Some details have been still better adapted to practical requirements, thus resulting in a new and modern design. The warming bed is available without cover, with a closed cover or with a fold up cover that can be opened on both sides, and can be upgraded with extensive accessories. The so called contact heat of the surface heater is the most effective type of heat transfer. The comfortable and soft gel-mattress will avoid pressure marks to the baby and support thermal stability of premature infants.

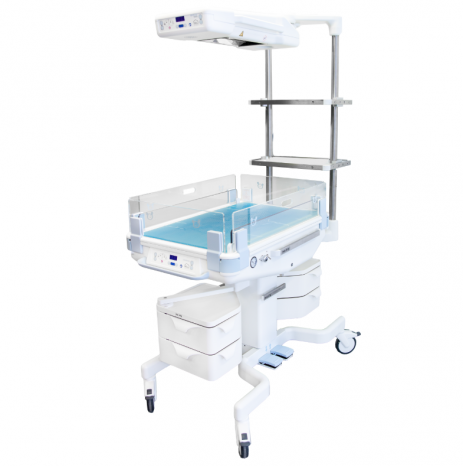

Lifetherm resuscitation units

A resuscitation unit with a lot of different options for optimal adjustment to suit the application as well as the needs of the baby and operating staff.
•Swiveling, fast-response radiant heater with integrated examination lamp.
•Conductive heat by a heated gel mattress.
•Quiet, electric height adjustment (up to 30 cm)
•Gentle electric bed tilting by pressing the corresponding button.
•Fold-down side panels available in various heights.
•Trays which allow the attachment of control panels and ventilators.

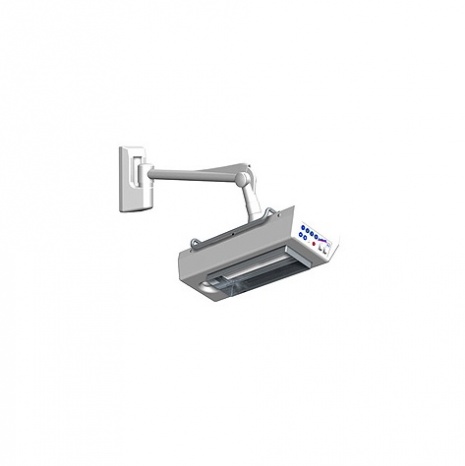

Isotherm

The Isotherm heating lamp
made by Löwenstein Medical – was specially designed for the warming of infant diaper changing tables and maintaining a baby’s body temperature. Isotherm is equipped with a ceramic heating element and an integrated halogen examination lamp.
•Infant’s skin colour is not altered.
•4 power settings (factory settings of 25,50, 75 & 99%)
•heating power can be set as desired according to ambient and infant body temperature.
•heating power of the four levels 1 – 4 can be set individually.

PHOTOTHERAPY

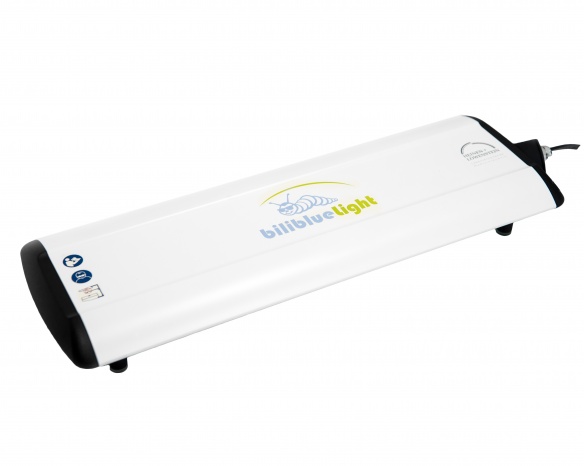

Bilibluelight

Phototherapy is used to treat newborn jaundice in premature and newborn babies to prevent kernicterus as an important complication. In doing so, the unconjugated bilirubin is transformed into a water soluble state by a photochemical reaction and secreted through the gall bladder and the kidneys. The new bilibluelight Bilirubin lamp by Löwenstein Medical is an effective trendsetting phototherapy system to reduce bilirubin in serum. The bilibluelight lamp is user-friendly thanks to the intuitive handling, the high-quality design and the light weight. It has premium high-performance LEDs, which provide more than 40,000 hours of operation. The optimal wavelength provides maximum bilirubin reduction. The compact and light-weight bilibluelight lamp can be perfectly integrated in the neonatal and pediatric wards. The bilibluelight lamp can be further expanded by as 1-arm-mounted luminaire on a wheeled stand.

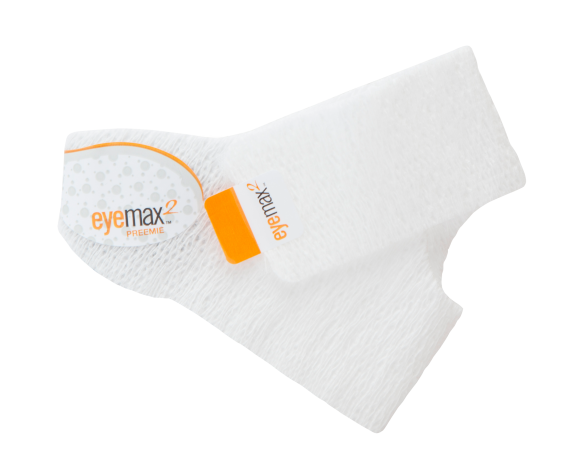

EyeMax2

EyeMax2 offers neonatal eye protection during UV light treatment in cases of jaundice.

EyeMax2 is available in three different sizes:

Micro: OFC 20-25 cm

Preemie: OFC 26-32 cm

Regular: OFC 33-38 cm


patient interface

Clinic Masks . Homecare -Nasal Masks . Homecare-Full Face Masks . Homecare-Minimalcontact Masks

Clinic Masks

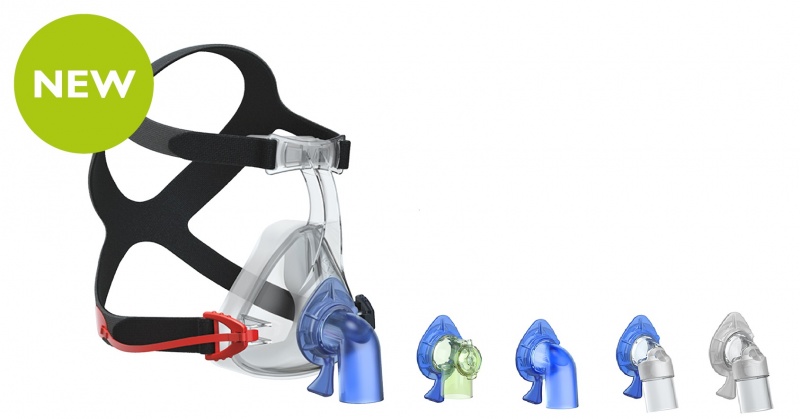

JOYCEclinic FF

JOYCEclinic FF – The right solution for every situation.
Our single patient use mask JOYCEclinic FF for acute Non-Invasive Ventilation (NIV) has established itself in clinical practice.
They’ve made the mask cushion longer and broader for an even faster and securer fit on noses of all shapes and sizes.
The reinforced silicone area between mask cushion and mask body ensures stability – even at high pressures or upon sudden removal of the mask.
The four different elbow adapters can be changed intuitively and quickly by means of the easy-to-use lever on the retaining ring.
You’ll find the right mask variant for every situation and device combination.
The headgear, which keeps the mask securely in place even at high pressures, can be disconnected quickly and simply by pulling the quick-release cord.
JOYCEclinic FF comes in three sizes in the variants non-vented, non-vented with Anti-Asphyxia Valve (Leakage 1) and vented with AAV (Leakage 2).
The endoscope adapter, available as a practical accessory, allows bronchoscopy to be made without interrupting ventilation.

Homecare

Nasal Masks

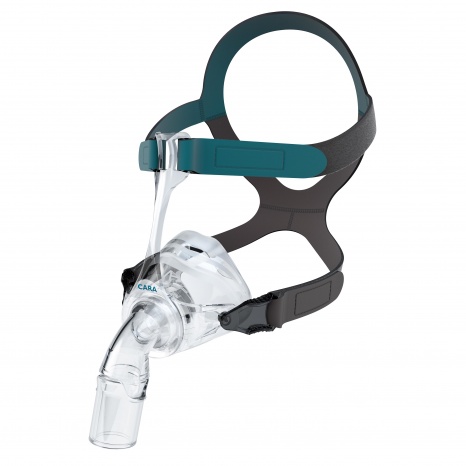

CARA

The lightweight CARA mask features a softly supple cushion with exact fit, a quiet, diffuse exhalation system and other details that make life easier.
Advantages of CARA: Soft, supple mask cushion in two sizes only. Lightweight at only 59 grams. Small, quiet and diffuse exhalation system. Color-coded headgear with intuitively used clips and EasyGrab. Ball-and-socket joint for freedom of movement. Extremely durable material

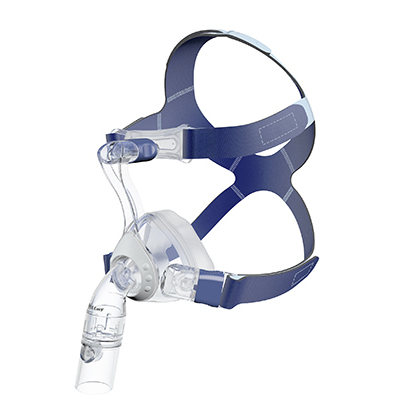

JOYCEeasy

JOYCEeasy: Our nasal mask with all-around practical features. Available in three sizes, the JOYCE easy has won over many fans with its reliable airtightness and good fit. Many improvements to details in the mask cushion have made JOYCEeasy even more comfortable. The mask retains its well-known extras such as the quiet flow of exhaled air, freedom of movement ensured by the ball-and-socket joint and simple cleaning procedures.

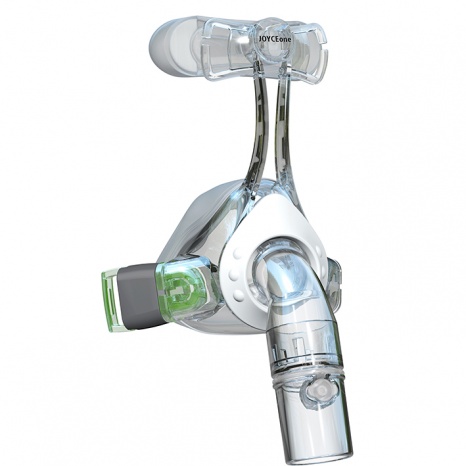

JOYCEone

JOYCEone: One mask in one size that fits nearly every face! Our current best-selling mask in international markets comes in just one size that provides a reliable, absolutely airtight fit for most patients. The good fit is made possible by the specially designed mask cushion and the new, highly flexible forehead support. The proven ball-and-socket joint makes sure the tube stays in place. JOYCEone very quietly releases the patient‘s exhaled air.

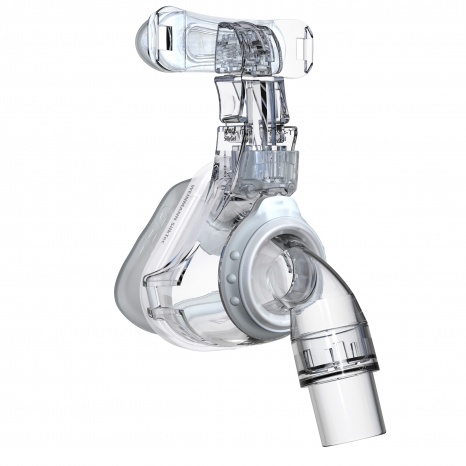

JOYCE SilkGel

The combination of high-quality gel and SilkTec surface finish in this therapy mask from Weinmann offers skin-friendly comfort and an outstanding adaptation to facial contours. The mask is also very easy to clean. Available in three sizes and, upon request, as a non-vented variant without integrated exhalation system.

Homecare

Full Face Masks and Minimalcontact Masks

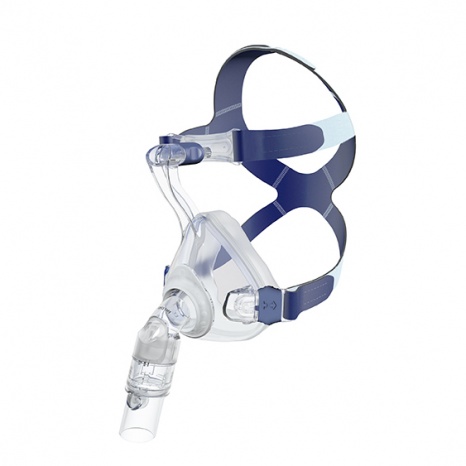

JOYCEeasy Full Face

The result of continuous product development, the successful full face mask from Löwenstein Medical has many well-designed details, including friction-reduced silicone parts, the unique ball-and-socket joint for greater freedom of movement and the integrated pressure measurement port. The comfortable mask comes in sizes S, M and L.

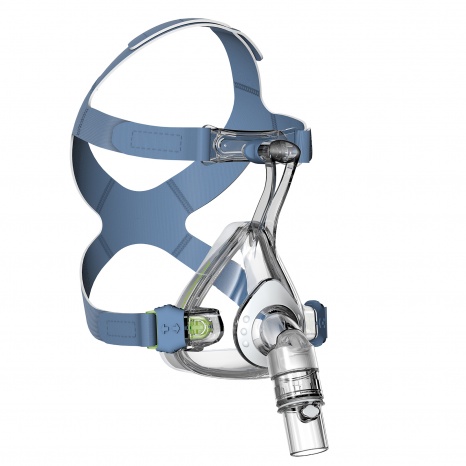

JOYCEeasy next FF

The modified version of the successful JOYCEeasy Full Face mask from Löwenstein Medical is equipped with an optimized mask cushion and new headgear, both of which were designed for use with high pressures. The easy open-and-close ergonomic headgear clips simplify mask handling. Particularly suitable for ventilation and sleep apnea patients with normal to obese faces.

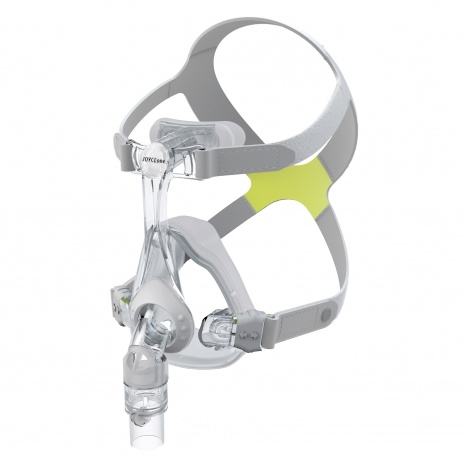

JOYCEone Full Face

This new full face mask from Löwenstein Medical has all the advantages of the successful JOYCEone series. Made of robust materials, it is light and compact and highly comfortable, plus it is easy to use and to clean.

NP15

Quiet, quieter, quietest. That’s our nasal pillow mask NP15. As the name implies, the quietness is just 15 decibels at a pressure of 10 hPa (hectopascal). The sleep therapy mask is also very comfortable. Its two ball-and-socket joints and tube anchoring straps guarantee unlimited freedom of movement without compromising on stability. Our NP15 offers the best conditions for recuperative and sound sleep.

Monitoring

Heart Rate Apnea and Oxygen Saturation Monitor . Lung sound monitor

VitaGuard VG 3100

The VitaGuard® VG 3100 is the most versatile of the Vita Guard® monitors. It monitors oxygen saturation (SpO2), heart rate and respiration of risk patients of all ages, thus giving medical personnel and caregivers the security they need, both in ambulatory and clinical environments.
Highlights:
Monitored parameters: Oxygen saturation, heart rate, respiration. Operating time with batteries: 8 h minimum. Displays: Graphical LCD display, 5 LEDs. Memory modes: Event, trend, full-disclosure and compliance. Alarm notification: Acoustic and visual. Data transfer: USB port.

LEOSound

LEOSound is a special developed new respiratory diagnostic system. The system is able to record and analyze cough, breath- and lung sounds over a long period. The device is battery-operated, small and compact and allows a smooth ambulatory or stationary recording for children and adults. Three highly sensitive Surface Microphones are available for recording, which respond to structure-borne sound. The microphones will be stuck on the thorax and the trachea. The registered signals will be electronically recorded and stored. A corresponding recording can be done continuously for many hours.

VitaGuard VG 2100

The VitaGuard® VG 2100 monitors respiration and heart rate of risk patients of all ages, thus giving medical personnel and caregivers the security they need, both in ambulatory and clinical environments. Monitoring can be accomplished at any time and in almost every place. The VitaGuard® VG 2100 generates acoustic and visual alarms when no respiration or movement is detected for a preset time. In the event of a physiological alarm, the measured values, their associated waveforms, and the monitor settings for selectable periods prior to and after the event are automatically stored.
